DICE10 - electronic dice controlled by two GPIO

·57 words·1 min

Yay, another mini-project with the ATtiny10!

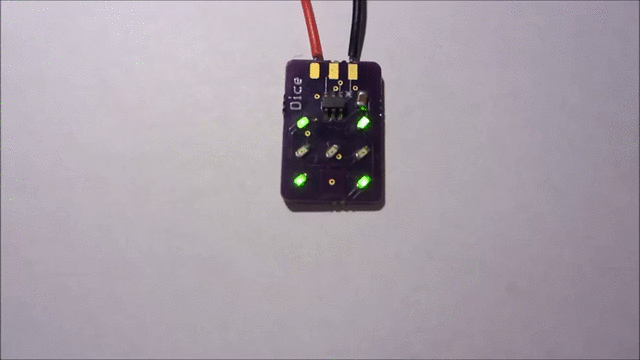

dice10

A while ago I devised a scheme to drive an electronic dice with only two IO lines. I finally found the time and motivation to build up a small design using this as an entry for the hackaday 1k compo. Please find project details on thehackaday.io page or the github repository.

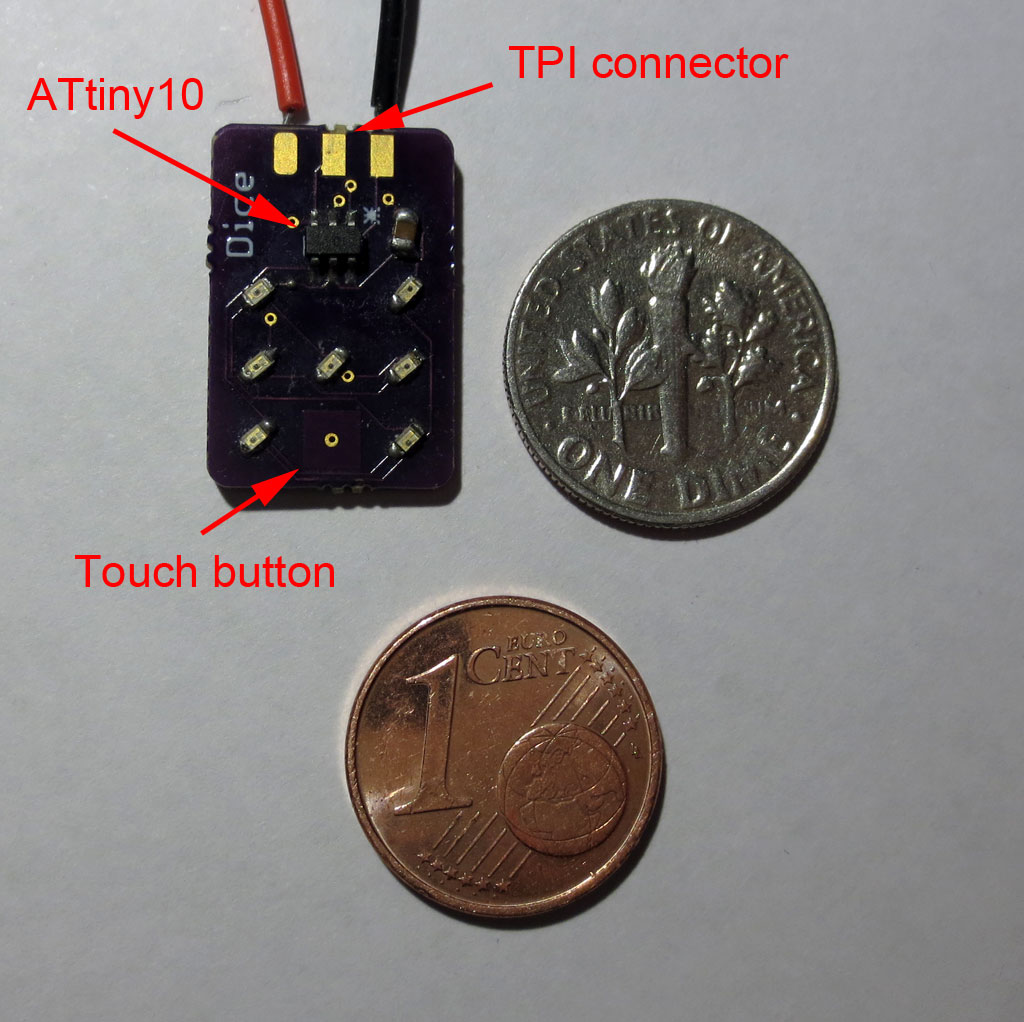

dice10_withtext
